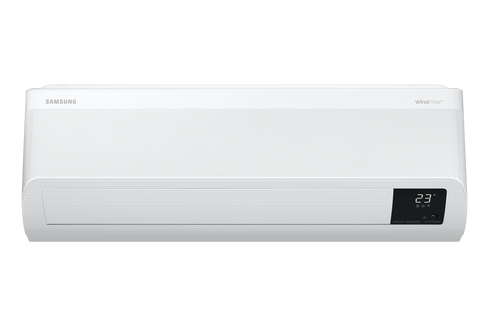

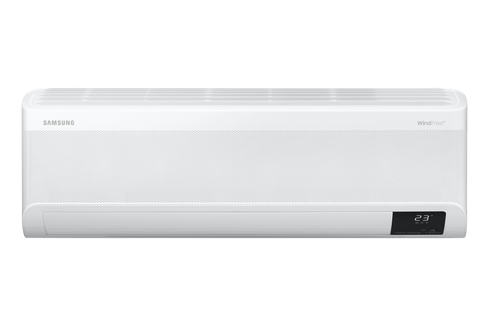

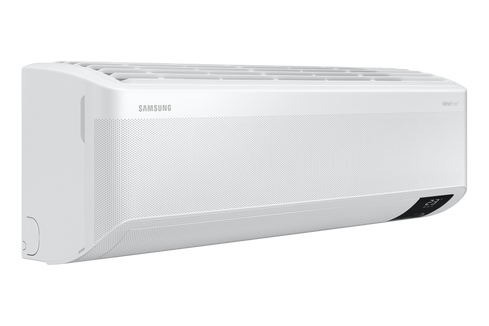

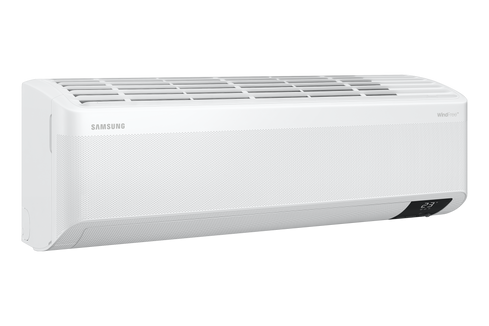

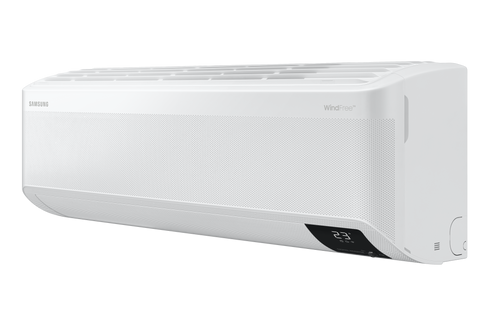

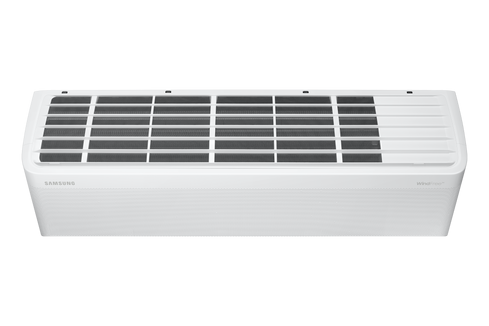

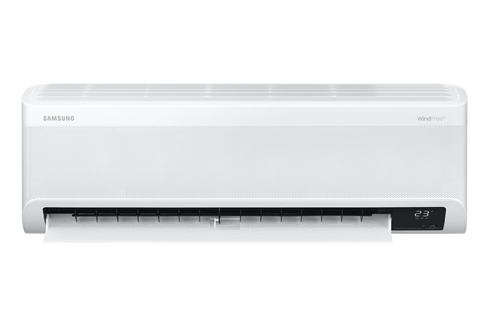

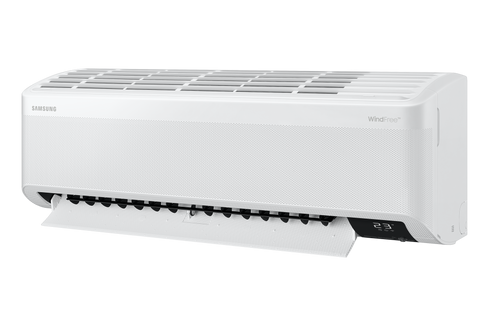

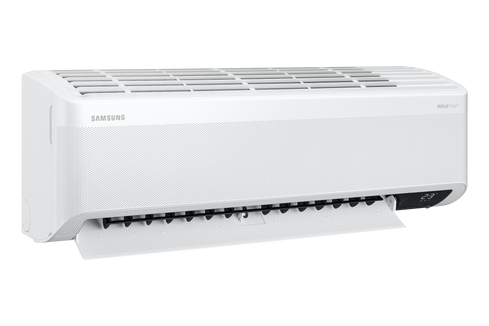

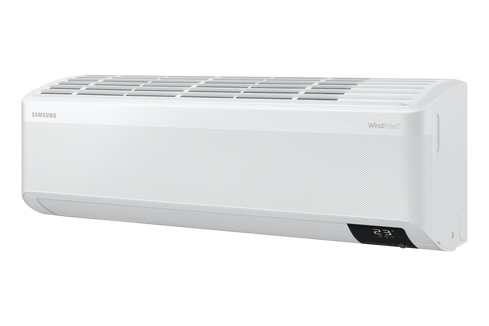

Samsung WindFree™ Elite High Wall Air Conditioning System | WIFI connectivity

Samsung WindFree™ Elite High Wall Air Conditioning System | WIFI connectivity

£804.00 GBP
£804.00 GBP
Sale Sold out
Taxes included. Free UK Shipping.

Install with us and claim a discount on domestic installs discover our air conditioning installation service today!

Capacity

No F-Gas certificate needed if we install; otherwise, email your certificate after ordering so we can dispatch.

UK-wide delivery arrives within 5–7 business days

Find the perfect AC size for your space – use our BTU Calculator to get an instant recommendation!

Key Features:

  • Energy-Efficient Performance: Inverter Heat Pump with R32 refrigerant for lower energy consumption and reduced environmental impact.
  • Smart Control: Built-in Wi-Fi connectivity lets you manage settings remotely via the SmartThings App.
  • AI Auto Comfort: Automatically adjusts settings based on room conditions and usage patterns for optimal efficiency.
  • Easy Maintenance: Easy Filter Plus with anti-bacterial coating ensures hassle-free cleaning and better air quality.

  • Auto Clean: Prevents bacteria and mildew buildup by drying the heat exchanger after use.

Model No: AR09CXCAAWKNEU

Product Specifications

Capacity

  • Cooling Capacity: 8,530 Btu/hr (Min-Max: 3,071 ~ 12,284 Btu/hr)
  • Heating Capacity: 10,919 Btu/hr (Min-Max: 2,730 ~ 24,226 Btu/hr)
  • Cooling Power: 2.50 kW (Range: 0.9 ~ 3.6 kW)
  • Heating Power: 3.20 kW (Range: 0.8 ~ 7.1 kW)

Energy Efficiency

  • SEER (Cooling Efficiency): 8.80 (A+++ Rated)
  • EER (Cooling Efficiency): 4.63 W/W (15.80 Btu/hW)
  • COP (Heating Efficiency): 4.74 W/W (16.18 Btu/hW)
  • Energy Class (Heating - Warmer Season): A+++ (5.5 W/W)
  • Energy Class (Heating - Avg. Season): A+++ (5.1 W/W)

Sound Levels

  • Indoor Unit: 56 dBA
  • Outdoor Unit: 59 dBA
  • Indoor (High/Low): 38 / 16 dBA
  • Outdoor (High): 45 dBA

Electrical Data

  • Power Source: 1 Phase, 220-240V, 50Hz
  • Power Consumption (Cooling): 540 W
  • Power Consumption (Heating): 675 W
  • Operating Current (Cooling): 2.9 A
  • Operating Current (Heating): 3.4 A

Physical Specifications

  • Indoor Unit (WxHxD): 889 x 299 x 215 mm
  • Outdoor Unit (WxHxD): 790 x 548 x 285 mm
  • Indoor Weight (Net/Gross): 10.5 kg / 12.5 kg
  • Outdoor Weight (Net/Gross): 32.5 kg / 34.8 kg

Technical Information

  • Piping Length (Max): 15m
  • Piping Height (Max): 8m
  • Refrigerant Type: R32 (GWP=675)
  • Refrigerant Charge: 0.965 kg
  • Operating Temperature Range:
  • Compressor Type: BLDC
  • Outdoor Unit Protection: Anti-Corrosion Fin

Airflow & Purification

  • WindFree Cooling: Yes
  • Air Direction Control (Up/Down & Left/Right): Auto
  • Air Flow Control Steps (Cool/Fan): 5/4
  • Tri Care Filter: Yes
  • Easy Filter Plus (Anti-Bacteria): Yes
  • Auto Clean (Self-Cleaning): Yes

Smart & Convenience Features

  • SmartThings App Connectivity: Yes
  • AI Auto Cooling: Yes
  • Motion Detect Sensor: Yes
  • Auto Restart: Yes
  • 24-Hour Timer: Yes
  • Good Sleep Mode: Yes
  • Eco Mode: Yes
  • Quiet Operation: Yes
  • WiFi Embedded: Yes
