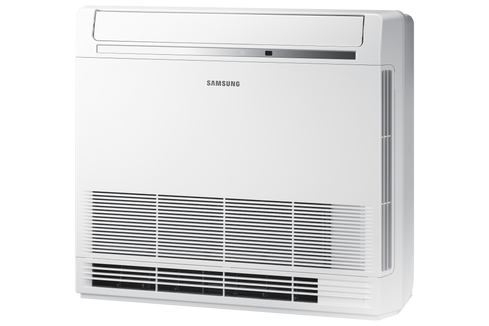

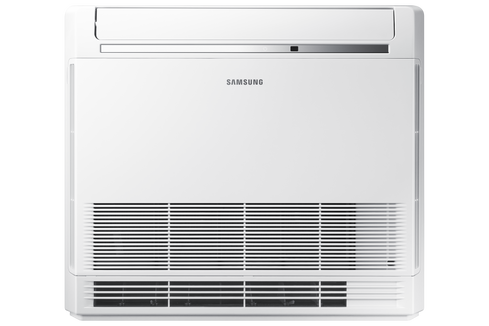

Samsung Floor Console Air Conditioner with WIFI Connectivity

Technical Specifications

General Information

• Type: 2.6kW-1Φ-Mini 4-Way Cassette
• System Mode: Heat Pump
• Indoor Unit Model: AC026RNNDKG/EU
• Outdoor Unit Model: AC026RXADKG/EU

Performance & Capacity

• Cooling Capacity: 0.87 / 2.60 / 4.10 kW
• Heating Capacity: 0.98 / 3.40 / 4.10 kW

Power & Energy Efficiency

• Power Input (Cooling): 0.16 / 0.67 / 1.20 kW
• Power Input (Heating): 0.20 / 0.92 / 1.45 kW
• Current Input (Cooling): 1.3 / 3.5 / 5.5 A
• Current Input (Heating): 1.3 / 4.6 / 7.0 A
• MCA (Minimum Circuit Ampacity): 11.0 A
• MFA (Maximum Fuse Ampacity): 12.5 A
• Energy Efficiency (Cooling): SEER 7.1 (A++)
• Energy Efficiency (Heating): SCOP 4.3 (A+)

Refrigerant & Piping

• Refrigerant Type: R32 (Low GWP = 675)
• Factory Charging: 0.90 kg (0.61 tCO₂e)
• Liquid Pipe Diameter: 6.35 mm (1/4")
• Gas Pipe Diameter: 9.52 mm (3/8")
• Max. Installation Length: 20 m
• Max. Installation Height: 15 m

Indoor Unit

• Fan Type: Turbo Fan
• Airflow Rate (High/Mid/Low): 8.0 / 7.0 / 6.0 CMM
• Sound Pressure Level (High/Mid/Low): 31 / 28 / 25 dBA
• Sound Power Level (Cooling): 48 dBA
• Dimensions (WxHxD): 575 x 250 x 575 mm
• Net Weight: 11.5 kg

Panel

• Model Name: PC4SUFMAN
• Dimensions (WxHxD): 620 x 46 x 620 mm
• Net Weight: 2.7 kg
• Shipping Dimensions (WxHxD): 670 x 120 x 655 mm
• Shipping Weight: 3.9 kg

Outdoor Unit

• Power Supply: 1 Phase, 220-240V, 50Hz
• Airflow Rate (Cooling): 30 CMM
• Sound Pressure Level (Cooling/Heating): 46 / 47 dBA
• Sound Power Level (Cooling): 59 dBA
• Dimensions (WxHxD): 790 x 548 x 285 mm
• Net Weight: 32.5 kg

Drain System

• Built-in Drain Pump
• Max. Lifting Height: 750 mm
• Displacement: 24 L/h

Operating Temperature Range

• Cooling: -15°C to 46°C
• Heating: -20°C to 24°C

Smart Features

• WiFi Kit: Yes
• App Connectivity: SmartThings App Support
