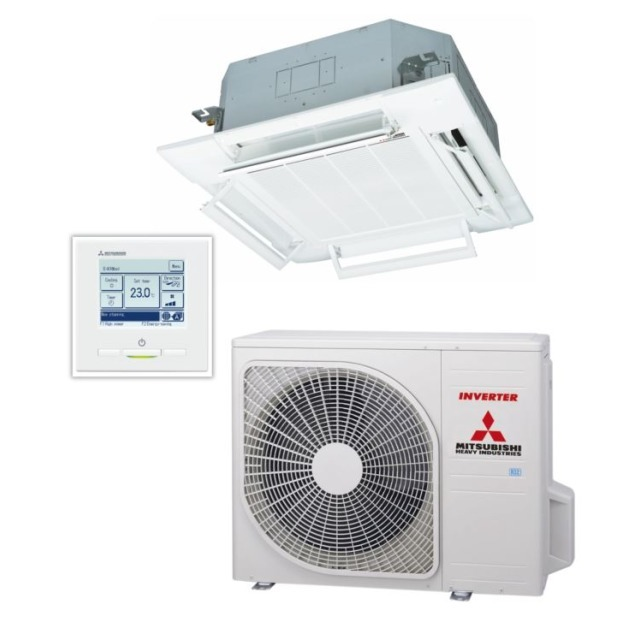

Mitsubishi Heavy Industries Standard Cassette System – Standard Inverter (R32, 1 Phase)

Reliable ceiling-mounted comfort with R32 refrigerant and proven standard inverter control. Ideal for medium to large spaces in a 600×600 mm ceiling grid.

Specifications

• Refrigerant: R32 (low GWP, high performance)
• Inverter Type: Standard inverter smooth modulation for stable temperature control
• Power Supply: 220–240 V / 1 Phase / 50 Hz
• Indoor Unit Dimensions: 289 (H) × 840 (W) × 840 (D) mm (fits 600×600 mm ceiling tile)
• Outdoor Connections: Liquid 9.52 mm / Gas 15.88 mm; max pipe run 30 m; height difference ±15 m
• Drain Pump: Built-in lift up to 750 mm
• Controls:
  • Infrared wired remote
  • 24 hr on/off timer, sleep mode
  • Auto-restart after power failure
• Acoustic Level (Indoor, Cooling): ≈ 38 dB(A) (low) – 44 dB(A) (high)

Why Choose the Standard Cassette System?

• Discreet Installation: Flush-mount cassette sits almost invisible in any suspended ceiling.
• Robust Performance: Standard inverter delivers reliable, cost-effective comfort.
• Quiet Operation: Low sound levels keep meeting rooms, classrooms and open-plan offices peaceful.
• Eco-Friendly Cooling: R32 refrigerant reduces environmental impact without compromising capacity.
