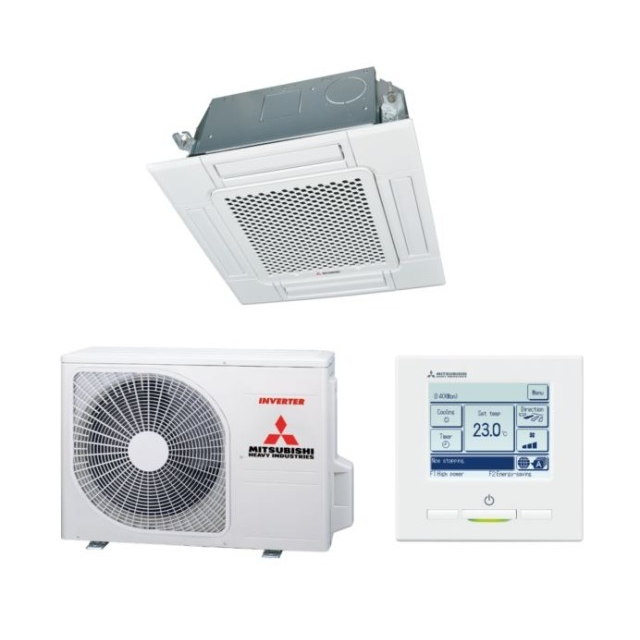

Mitsubishi Heavy Industries Compact Cassette System – Premium Inverter (R32)

Discreet ceiling cassette with advanced inverter, R32 refrigerant and optional Wi-Fi control. Perfect for offices, retail or home installations in 600×600 mm ceiling grids.

Specifications

• Refrigerant: R32 (Low GWP, high efficiency)
• Inverter Technology: Premium variable-speed compressor for rapid temperature control, smooth operation and up to 30 % energy savings
• Power Supply: 220–240 V / 1 φ / 50 Hz
• Indoor Unit Dimensions: 248 (H) × 570 (W) × 570 (D) mm
• Panel Size: 600 × 600 mm ceiling tile format; panel weight 2.5 kg
• Piping Connections: Liquid 6.35 mm (1/4″) / Gas 9.52 mm (3/8″); max inter-unit length 20 m; elevation difference ±10 m
• Drain Pump: Built-in lift up to 600 mm
• Controls & Connectivity:
  • Infrared handheld remote included
  • Optional Wi-Fi module for smartphone control & scheduling
  • 24 hr on/off timer, sleep mode & 7-day weekly timer
• Acoustic Levels (Indoor, Cooling mode):
  • 2.5 kW: 30 / 34 / 38 dB(A) (low/med/high)
  • 3.5 kW: 29 / 32 / 36 dB(A) (low/med/high)
• Operating Range: –10 °C to +46 °C (cooling); –15 °C to +24 °C (heating)

Why Choose the Compact Cassette Premium Inverter?

• Seamless Aesthetic: Fits standard ceiling grids with minimal visible trim.
• Quiet Comfort: Low sound levels let you focus on work or relax in peace.
• Green Performance: R32 refrigerant and high SEER/SCOP ratings reduce both running costs and carbon footprint.
• Smart Control: Wi-Fi module option unlocks remote monitoring, scheduling and energy-use insights.
