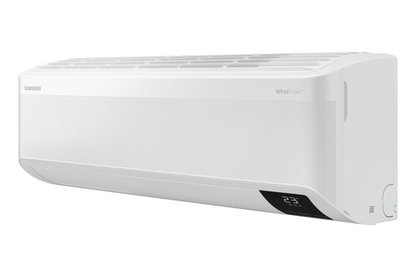

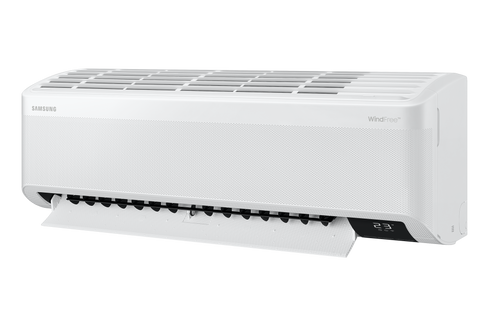

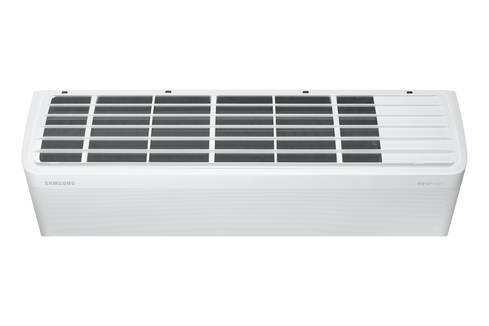

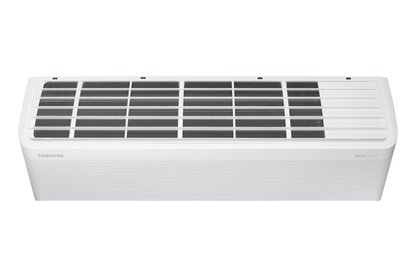

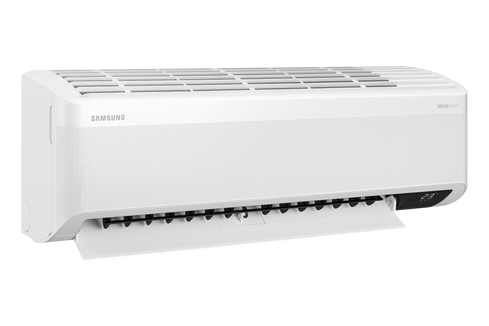

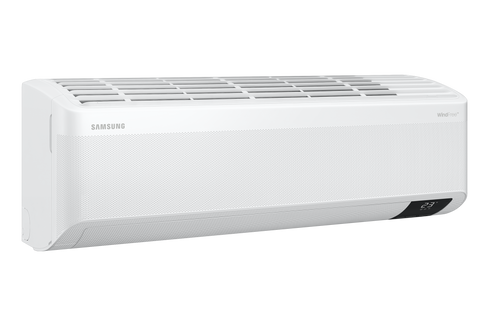

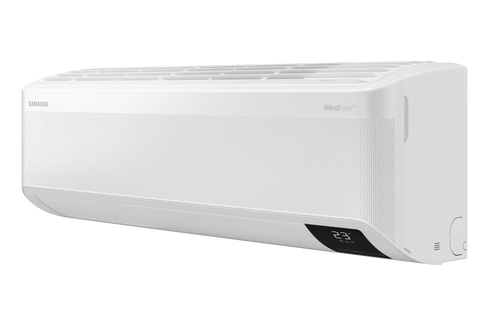

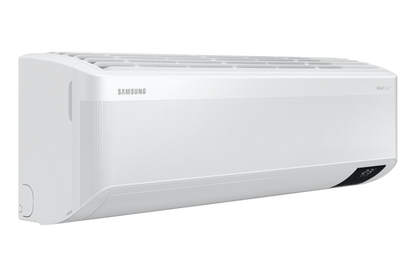

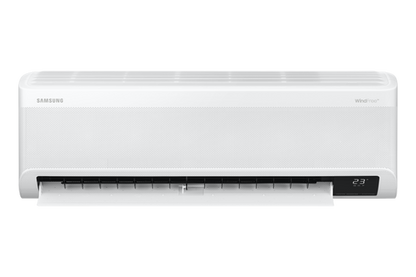

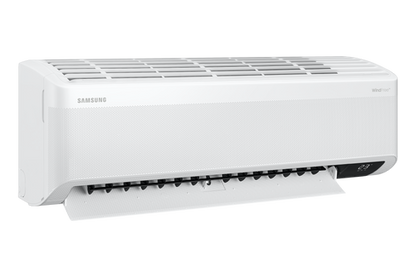

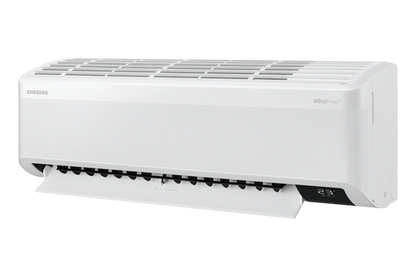

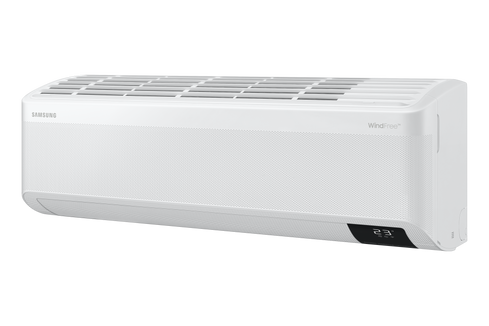

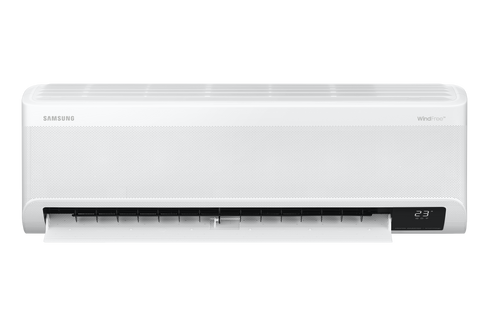

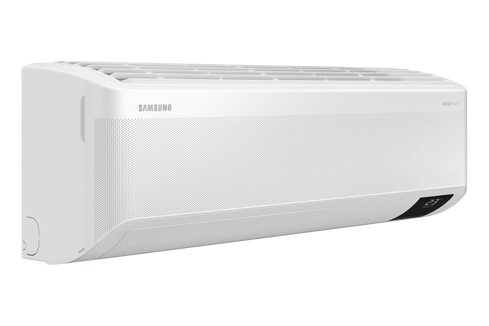

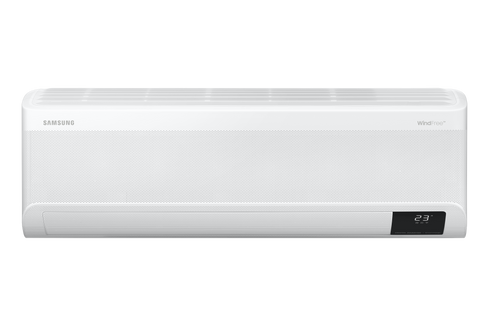

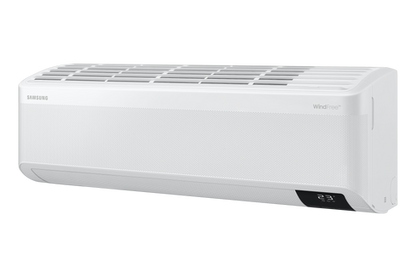

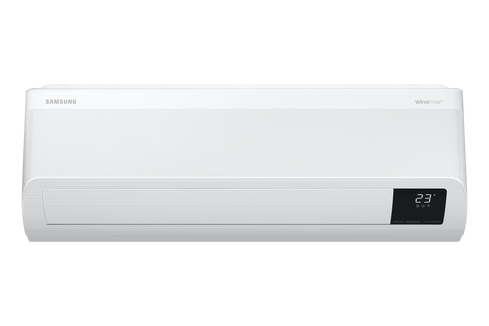

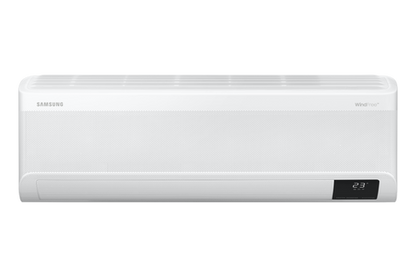

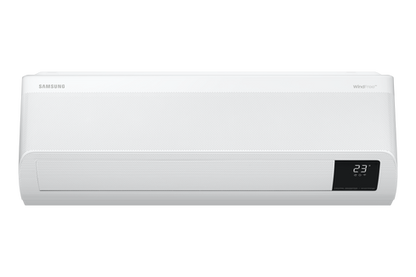

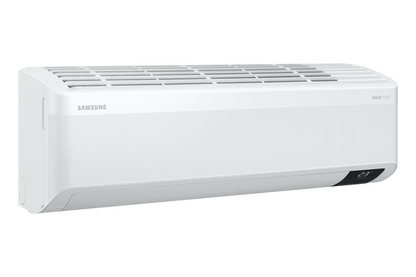

Samsung WindFree™ Avant High Wall Air Conditioning System | WIFI connectivity

Model No: AR09TXEAAWKNEU

Product Specifications

Capacity

• Cooling Capacity: 8,530 Btu/hr (Min-Max: 3,276 - 11,431 Btu/hr)
• Heating Capacity: 10,919 Btu/hr (Min-Max: 2,457 - 17,061 Btu/hr)
• Cooling Power: 2.50 kW (Range: 0.96 ~ 3.35 kW)
• Heating Power: 3.20 kW (Range: 0.72 ~ 5.0 kW)

Energy Efficiency

• SEER (Cooling Efficiency): 7.90 (A++ Rated)
• EER (Cooling Efficiency): 4.39 W/W
• COP (Heating Efficiency): 4.21 W/W
• Energy Class (Heating - Avg. Season): A++ (4.60 W/W)

Sound Levels

• Indoor Unit: 54 dBA
• Outdoor Unit: 59 dBA
• Indoor (High/Low): 38 / 16 dBA
• Outdoor (High): 45 dBA

Electrical Data

• Power Source: 1 Phase, 220-240V, 50Hz
• Power Consumption (Cooling): 570 W
• Power Consumption (Heating): 760 W
• Operating Current (Cooling): 3.4 A
• Operating Current (Heating): 3.7 A

Physical Specifications

• Indoor Unit (WxHxD): 889 x 299 x 215 mm
• Outdoor Unit (WxHxD): 790 x 548 x 285 mm
• Indoor Weight (Net/Gross): 9.9 kg / 12.1 kg
• Outdoor Weight (Net/Gross): 29.9 kg / 32.1 kg

Technical Information

• Piping Length (Max): 15m
• Piping Height (Max): 8m
• Refrigerant Type: R32 (GWP=675)
• Refrigerant Charge: 0.94 kg
• Operating Temperature Range:
• Compressor Type: BLDC
• Outdoor Unit Protection: Anti-Corrosion Fin

Airflow & Purification

• WindFree Cooling: Yes
• Air Direction Control (Up/Down & Left/Right): Auto
• Air Flow Control Steps (Cool/Fan): 5/4
• Tri Care Filter: Yes
• Easy Filter Plus (Anti-Bacteria): Yes
• Auto Clean (Self-Cleaning): Yes

Smart & Convenience Features

• SmartThings App Connectivity: Yes
• AI Auto Cooling: Yes
• Auto Restart: Yes
• 24-Hour Timer: Yes
• Good Sleep Mode: Yes
• Eco Mode: Yes
• Quiet Operation: Yes
• WiFi Embedded: Yes
